廣和通智能模塊SC182-CN模塊

基本特性
封裝 152LCC+171LGA
Memory(Default) 2GB LPDDR3 RAM;16GB eMMC Flash

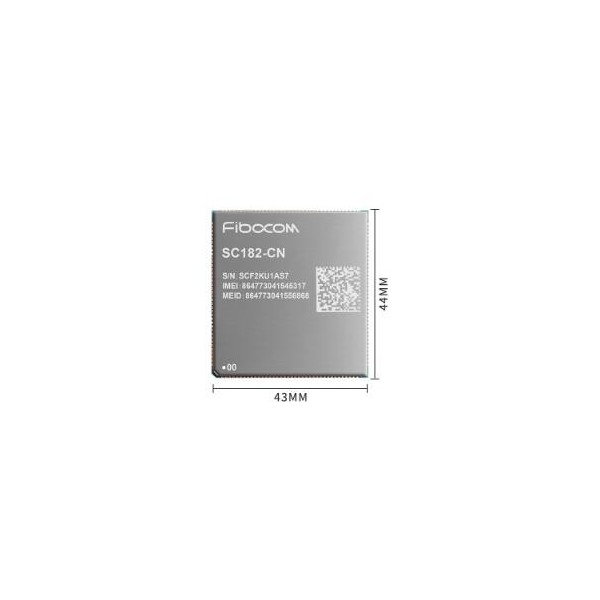

尺寸(mm) 43.0*44.0*2.85
Frequency LTE-FDD: B1/3/5/8
LTE-TDD:B34/38/39/40/41
WCDMA:B1/8
GSM:900/1800MHz
BT BT2.1+EDR/3.0/4.2 LE
GNSS GPS/GLONASS/Beidou
重量 12.1g
數據傳輸
LTE FDD (Mbps) Max 150(DL)/ 50(UL)
LTE TDD (Mbps) Max 130(DL)/ 30(UL)
WCDMA (Mbps) HSUPA Max 5.76(UL) HSPA+Max 42(DL)
TD-SCDMA (Mbps) Max 4.2(DL)/ 2.2(UL)
CDMA2000 1X/EVDO (Mbps) Max 3.1(DL)/ 1.8(UL)
EDGE/GPRS(Kbps) EDGE:Max 296(DL)/ 236.8(UL)
GPRS:Max 107(DL)/ 85.6(UL)
WiFi (Mbps) up to 433
硬件接口
UART/SPI(Mbps) 3xUART Up to 4; SPI Up to 50
I2C(Kbps) Up to 400 for CTP/Camera/Sensor
USB 1 x USB2.0 up to 480Mbps
1 x USB3.0 up to 5Gbps
support USB OTG(external 5V power supply)
SDIO Support SD3.0 protocol; support 4 bit SD card
CAM MIPI_CSI 4lane x 3(Up to 2.1G)
Support 3 or 4 cameras
Up to 21MP
GPIO 30GPIOs
Display 2 x 4-lane MIPI_DSI
up to (1920x1080)@60fps
認證

regulation RoHS*/CCC*/SRRC*
